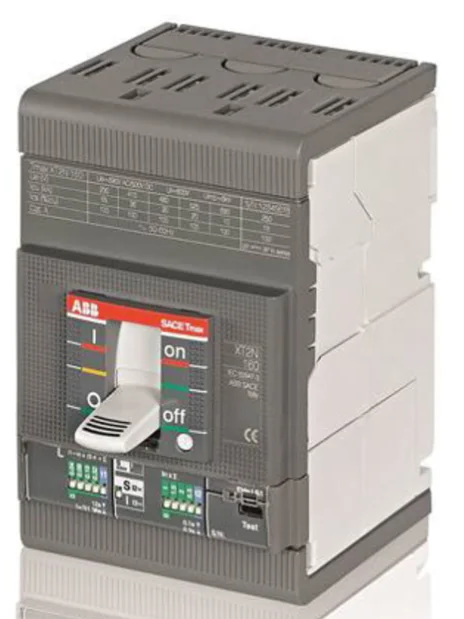

MCCB or Molded Case Circuit Breaker is a circuit breaker with molded case that protects devices from the over current in the electrical system. MCCB will protect your system from the overcurrent or short-circuit situation.
The main goal of an MCCB is to overtake the exposure to high currents to protect everything that is connected after the MCCB.
What is MCCB used for?
How Many Types of MCCB are There?
MCCBs are mainly classified by how they protect and where they are used.
There are 4 common types of MCCB based on application:
1. Thermal Magnetic MCCB
-
Most common type.
-
Thermal protection: trips during overload (long-term overcurrent).
-
Magnetic protection: trips during short circuit (sudden, massive current).
-
Used for: general electrical protection (motors, panels, etc.).
2. Electronic (or Digital) MCCB
-
Protection is controlled by microprocessors instead of mechanical parts.
-
Offers adjustable settings for overload, short circuit, ground fault, etc.
-
Used for: more sensitive equipment, large industrial systems, complex protection needs.
3. Motor Protection Circuit Breaker (MPCB)
-
Specifically designed for motor protection.
-
Protects against overloads, short circuits, and phase failure.
-
Used for: directly protecting electric motors.
4. Earth Leakage MCCB (ELMCCB)
-
Includes earth leakage protection in addition to overload and short-circuit protection.
-
Detects if current is leaking to ground (important for shock and fire prevention).
-
Used for: places where ground faults are a serious risk (wet areas, sensitive buildings).
✅ Summary Table:
| Type | Main Purpose | Used For |
|---|---|---|
| Thermal Magnetic | Basic Overload + Short Circuit | General circuit protection |
| Electronic | Advanced programmable protection | Industrial and large systems |
| Motor Protection (MPCB) | Motor-specific protection | Motors, pumps, compressors |
| Earth Leakage MCCB (ELMCCB) | Add ground fault protection | High-risk or sensitive areas |
What is the difference between MCCB and motorized MCCB?
| Feature | Standard MCCB | Motorized MCCB |
|---|---|---|
| Basic Function | Protects against overloads, short circuits, faults | Same protection (overload, short circuit, etc.) |
| Manual or Automatic Operation | Manual — you have to physically switch it ON/OFF | Automatic — can be switched ON/OFF remotely using a motor mechanism |
| Control | Only manual control at the breaker | Remote control via a switch, PLC, or automation system |
| Use Case | Simple protection where human intervention is fine | Systems needing remote reset, automated restart, or centralized control |
| Additional Cost | Standard cost | Higher cost (extra motor + wiring + control circuit) |
✅ In simple words:
-
MCCB = you must walk to it and manually turn it ON or OFF.
-
Motorized MCCB = you can open or close it remotely (for example, from a control room or via PLC/SCADA).
🔹 Real Example:
Imagine a big solar farm or industrial plant — you don’t want workers walking 500 meters just to turn ON a breaker.
With a motorized MCCB, they can remotely turn it ON/OFF safely from a control panel.
What is the difference between MCB and MCCB?
| Feature | MCB (Miniature Circuit Breaker) | MCCB (Molded Case Circuit Breaker) |
|---|---|---|
| Current Rating | Up to about 100A | Up to about 2500A or more |
| Breaking Capacity | Up to about 10–15 kA (lower faults) | Up to about 100 kA (higher faults) |
| Adjustable Settings | No (fixed trip settings) | Yes (trip current, delay often adjustable) |
| Size | Small, fits on DIN rail in panels | Larger, bulkier |
| Protection Against | Overload + short circuit | Overload + short circuit + sometimes ground fault |
| Typical Use | Home wiring, small buildings, light loads | Industrial plants, heavy machinery, large power distribution |
| Cost | Cheaper | More expensive |
✅ In simple words:
-
MCB = for small loads, like your home circuits (lights, sockets).
-
MCCB = for big loads, like factories, motors, transformers, large distribution boards.
- 🔹 Example:
If a short circuit happens at home → MCB trips.
If a large motor in a factory draws too much current → MCCB trips.
Can we use MCCB at home?
Yes, you can use an MCCB at home, but usually it’s not necessary — and often it’s overkill.
Here’s why:
| Reason | Explanation |
|---|---|
| Current levels | Homes usually need protection for small circuits (10A, 16A, 32A), but MCCBs are made for higher currents (100A–2500A). |
| Physical size | MCCBs are much bigger than MCBs and don’t fit neatly into normal home distribution boards. |
| Cost | MCCBs are much more expensive than MCBs, which makes it wasteful for typical home needs. |
| Complexity | MCCBs may have adjustable settings (overcurrent, short-circuit trip times), which aren’t really needed in homes. |
| Better alternative | MCBs (Miniature Circuit Breakers) are designed for home circuits and are cheaper, smaller, easier to install, and safer for home use. |
✅ When MCCBs might be used at home:
-
If you have very large loads (like a big home elevator, huge HVAC system, workshop machinery, or a home solar system with high currents).
-
As a main incomer breaker if your house is very large (e.g., a villa or farmhouse with heavy electrical systems).
- 🔵 In short:
For normal houses → use MCBs.
For special cases (huge loads) → you might install 1 MCCB at the main distribution board.
Is MCCB a switchgear?
Yes, an MCCB is considered a type of switchgear.
Here’s the clear meaning:
-
Switchgear is a general term for all devices that are used to switch, protect, and control electrical circuits.
-
MCCB (Molded Case Circuit Breaker) is a protective device that can switch (turn on/off) and protect (disconnect during faults) — so it belongs to the switchgear family.
🔵 In simple terms:
| Item | Category |
|---|---|
| MCCB | Type of low-voltage switchgear |
| ACB (Air Circuit Breaker) | Type of switchgear |
| Contactors | Part of switchgear |
| Isolators | Part of switchgear |
| Relays | Part of protection systems inside switchgear |
✅ So: MCCB = Low-voltage protective switchgear.
Switchgear can be low voltage (like MCCB, MCB, contactors) or high voltage (like gas-insulated breakers, large transformers, etc.).
MCCBs work in the low voltage range (typically up to 1000V AC).
What are the disadvantages of MCCB?
Disadvantages of MCCB:
| Disadvantage | Explanation |
|---|---|
| Higher Cost | MCCBs are more expensive than MCBs or fuses, especially for high-current models. |
| Large Physical Size | They are bigger and heavier, taking up more space in panels or enclosures. |
| Complexity | Settings like overload trip current, short-circuit trip delay, etc., can be complicated to adjust incorrectly. |
| Manual Reset | After tripping, someone has to manually go and reset it unless it is motorized (which adds even more cost). |
| Maintenance Needed | MCCBs (especially in dusty or humid environments) might need regular inspection and testing to ensure correct operation. |
| Limited Precision | Standard MCCBs aren’t as precise as electronic protection relays when it comes to detecting faults like earth leakage or arc faults. |
| Slow Response in Some Cases | In very sensitive circuits (e.g., electronics), MCCBs can be a bit slower to trip than fuses or fast-acting breakers. |
✅ Summary in simple words:
-
MCCB = strong and flexible but bigger, costlier, and sometimes overcomplicated for small/simple applications.
Yes, you can use an MCCB instead of a fuse, and in many modern systems, MCCBs are preferred over fuses — but it depends on what you need.
| Feature | MCCB | Fuse |
|---|---|---|
| Reusability | Can be reset after a trip | Must replace after a fault (single use) |
| Protection | Protects against overload + short circuit | Protects mainly against short circuit (fuses blow very fast) |
| Trip Settings | Adjustable (current and time delay often) | Fixed (depends on the fuse rating) |
| Cost | Higher initial cost, but reusable | Lower cost, but recurring replacement costs |
| Response Speed | Slightly slower to clear faults | Very fast clearing (good for sensitive equipment) |
| Maintenance | Needs periodic check/test | Simple: just replace blown fuses |
| Application | Industrial, large circuits, adjustable loads | Ultra-fast protection for sensitive devices, small circuits |
✅ When it makes sense to replace fuses with MCCB:
-
When you want easy reset (not replacing fuses every time).
-
When you want adjustable settings (for example, different motor sizes or current changes).
-
When downtime must be minimized (resetting MCCB is much faster than replacing fuses).
🔴 When fuses might still be better:
-
Where extremely fast disconnection is needed (like protecting very sensitive electronics).
-
Where cost must be extremely low and maintenance crews are available to replace fuses.
🔵 Simple Example:
-
For factory main distribution → MCCB is better.
-
For protecting a delicate PLC power input → fuse is better.
The voltage rating of an MCCB (Molded Case Circuit Breaker) typically depends on its design and application, but here’s the general range:
Voltage Ratings for MCCB:
-
Low Voltage MCCBs:
-
Typically rated for up to 1000V AC (alternating current).
-
Common standard ratings are 415V AC or 600V AC for residential and industrial applications.
-
Used in: Most households, small factories, and distribution panels.
-
-
High Voltage MCCBs (Specialized):
-
Can go up to 15kV or more for specialized applications.
-
These types of MCCBs are typically not common in regular homes but are used in large industrial plants or substations where higher voltage systems are involved.
-
Common Voltage Ratings:
| Voltage Rating | Common Use |
|---|---|
| 415V AC | General industrial, commercial, and residential circuits |
| 480V AC | Larger industrial systems, machinery, or equipment |
| 600V AC | Commercial and industrial machinery |
| 1000V AC | High voltage equipment, specialized panels |
Important Note:
-
Always choose an MCCB with a voltage rating matching or exceeding the voltage of your system.
-
For home use, MCCBs up to 415V are the most common, as most homes run on 220V to 240V or 400V in 3-phase systems.
Can MCCB be used as switch?
Yes, an MCCB can be used as a switch, but it’s not typically the primary use. Let me explain why and in what situations it might be used as a switch:
MCCB as a Switch:
-
MCCBs are designed to protect circuits by disconnecting power in case of overloads or short circuits. However, they can also be manually operated to switch off or switch on the circuit, which is why they can serve as a switch.
-
Key Points:
-
Manual Operation: You can manually switch an MCCB on or off just like a regular switch.
-
Breaking Capacity: Unlike regular switches, MCCBs are designed to handle fault currents (short circuits), so they can break large current flows safely.
-
Adjustable Settings: In some cases, you can set the trip current of an MCCB, which gives it more flexibility compared to a regular switch.
-
Why Use an MCCB as a Switch?
-
In Large Industrial Systems: MCCBs are often used as switches in large systems, because they provide both overload protection and switching capabilities in one device.
-
For High Current Loads: If you’re dealing with high-current circuits (such as motors, large transformers, or panel boards), the MCCB can serve as a switch and protection device in one unit.
Limitations:
-
Slower than regular switches: MCCBs are designed to break large currents and usually take longer to operate compared to a regular switch.
-
Not ideal for frequent switching: If you need to frequently turn a circuit on/off, a regular isolator switch or contactor would be more efficient and designed for that purpose.
-
Size and Cost: MCCBs are bulkier and more expensive than regular switches, so they’re not the best option if you simply need a basic on/off switch for small circuits.
Example:
-
In an Industrial Panel: A large MCCB might be used to switch off a high-power motor. When a fault happens, the MCCB not only disconnects the motor but also provides protection against overloads or short circuits.
Conclusion:
-
Yes, an MCCB can act as a switch. It’s often used in industrial or high-power applications where you need both protection and switching in one device.
-
However, for regular on/off switching in residential or small applications, regular switches or isolators are usually more appropriate.
